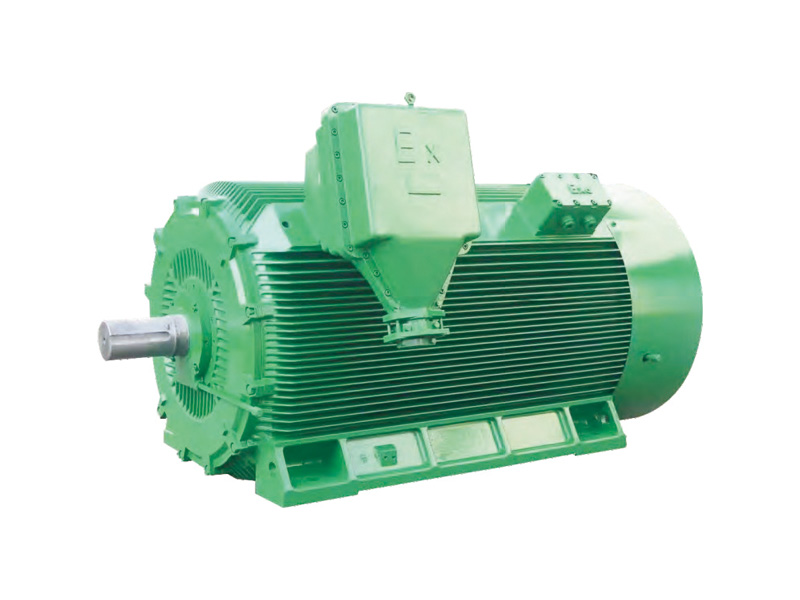

YB3 Series compact high votage flameprof three-phase asynchronous motor is my company in the digestion and absorption of foreign high votage motor manufacturingtechmo ogy foundation,combined with my companys lon-term stable producton hioh voltace famerof three-phase asynchronous motor desian and manufacture anodevelopment of new productsThis sers motor using new technology, new material, new technology, and in materal, fin workmanship, has smal volume, light weight,big power,high efficiency, low noise, little vibration, reliable operation, easy operation and maintenance, and etc.

This series motor shel protection leve is commonly P4, cooling mode for 1C411, nstalation for IMB3, aso can according to user requirements into diferent protection typecooling mode, method of installation.

This eres motor GB755 accord with the rotating machine guota and performance", B3836.1 the explosive environment the first part: the general requirements "and GB38362the explosive environment the second part: the flame-prof shel" d "protection eouipment" requlation, make fameproof motor fameprof mark for Ex d 1 Mb, EX d TIA T4 Gb,EX d1B T4 Gb, Ex d 1C T4 Gb are suited for explosiv gas environment 1 zone and 2 zone dangerous places. Can be widely applied to drive al kinds of general machinery, such asompressors, pumps,crusher, cuting machine, transportaton machinery and other mechanica equipment, mining, machinery industry, petrochemical industry, power plants andindustrial and mining enterprises as a prime mover in use

Ex d I Mb suitable for methane and coal dust in coal mine underaround non mining working face explosive gas environment.Ex d IIA T4 Gb is suitable for factory use Il class A level. temperature aroup for T1, T2. T3. and T4 aroup of explosive gas environmentEx d I1B T4 Gb is suitable for factory use Il class B level, temperature group for T1, T2, T3, and T4 group of explosive gas environment.Ex d I1C T4 Gb is suitable for factory use ll class C level, temperature group for T1, T2, T3, and T4 group of explosive gas environment.

Motor body shel and junction box protection evel for P54. als can be made into IP55. Motor also can be made into YB3 -W outdoo, YB3 -TH indoor damp and hot zone typeYB3 -THW outdoor damp and hot zone type. YB3- TA indoor dry tropical type, YB3- TAW outdoor dry tropical type.YB3-T indoor tropical type. YB3- TW outdoor tropical type antYB3 -WE1 outdoor prevent medium corrosion type and climate onditions motor, The main installation size and shape of the same basic series motor.

Model Instruction

Construction Features

This series motors employ compact structure popurlar in the world with compactand attracive appearance.Cooling ribs shall be distributed on the inner and outersurface of the frame and end shield.

The stators adopt extermal presure assembly onstructions and ar of Class F insulation,Stators coils are would with insulating fat copper wire,Tthe whole windings are vacumpressure-impreanated to make them possess highest electrical performance. mechanica strenoth,insultion property,moisture resistance and thermo-stabilityThe rotors are of squirel cage structure.After high precision balancing verification,the motors can run smoothly with smal vibration.High-oltage terminal boxes ar seal structure with a large terminal compartment within which postion of cable heads are lef.Theterminal boxes generally locate on the rightside of the motors.The bearing structure shal be selected accordin to diferent output and peed.For frame size H355560 and 4,6, 8p motors, roling bearing shal be provided.For frame sizeH50560 and 2o motors .sleeve bearig shal e provided .For rolin bearing, atachments having the use to replenish the lubricating grease without stoping the motor are set up atboth ends of the bearin.attachments havin the use to repienish orease perodicaly.Sleeve earina. Which is end shield sohere sleeve bearina.s oressure fed ubrication form.oil inaself-lubrcation and combined type ubrication The lubrication form sha! be selected by userPressure feed lubrication form shal be provided f the user has no sneciarequirment,)，The measures to prevent shaft current from generating are taken at the same time.Motors can be equipped with a earing temperature detector to detect bearing temperature and also with a stator temperature detector and an ant-condensation heating deviceon customers request.

The flameproof structures are adopted with the barrel configuration,plain and axial labyrinth etc.

Srvice conditions

Amblent temperature subject to seasonal variation with the highest and the lower temperatures do not separately exceed 40'C and -15'C.

Altitude up to 1000m above sea level.

Rated voltage:6kV、10kV.

Rated frequency:50Hz

Duty type:continuous S1
