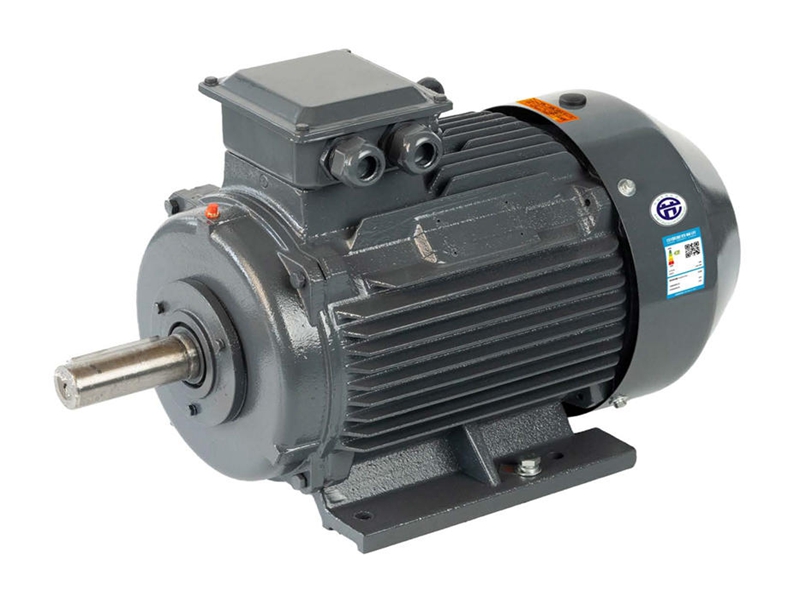

YE4 series high efficiency three phase asynchronous motor is our self-developed design of totally enclosed fan cooled three-phase asynchronousmotor. The efficiency of lndex operator s GB18613-2020 "small and mediumsized three-phase asynchronous motor limited value of energy efficiencyand energy efficiency grade" the provisions of the l level of efficiency, theefficiency indicators and IEC60034 - in appendix A recommended list of 31(le4).

This series motor frame number range of 80 ~ 355, power rating andinstallation size and in line with the GB/T4772.1 / EC60072-1GB/T4772.2EC60072-2 the provisions of the standard.

Product features

(A) Eectric main junction box located at the top of the stand, can control line.to meet the requirements of the users to different ways of qualification;

(B) The motor frame size 160 and above, can according to user needs toprovide the stator temperature measuring device, bearing temperaturemeasuring device, heater, constantly Machine note oil discharge device;

(C) Junction box, frame, the beautiful appearance, novel style of end coverand wind cover, and is good for noise reduction and ventilation;

(D) Motor adopts thermal class is 155 (F) insulation system, so as to prolongthe service life of the motor;

(E) Motor work week for Sl, cooling way for IC411, 1 p55 protection grade;

(F)ls suitable for various applications, such as: the "w","TH"，"WTH" and"F1"，"f"，"WF1" and"WF2",among them: W for outdoor light corrosionprevention; TH is hot and humid; WTH the outdoor hot and humid; F1 forindoor medium corrosion prevention; F2 for indoor strong corrosionprevention the corrosion; WF1 medium corrosion prevention for the outdoors;WF2 strong corrosion prevention for the outdoors;

(G) For the convenience of connected load, the motor shaft extension end Ccenter hole is reserved:

(H)Excellent starting characteristic;

(I) The high quality of the motor to ensure the high reliability;

(J) High efficiency, energy saving, safety and environmental protection.
