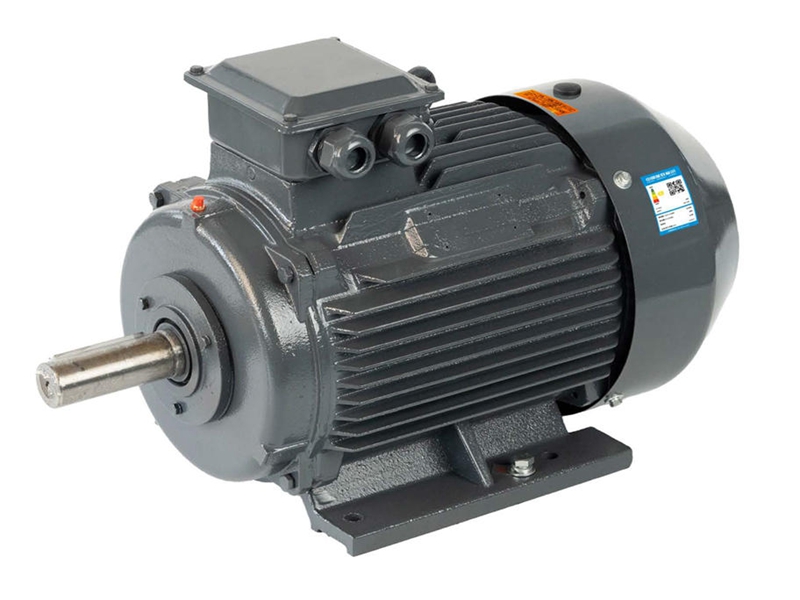

YE3 series high efficiency three phase asynchronous motor is touse the new material, new process and optimize the design andmanufacture of fully enclosed, since the fan cold squirrel-cage threephase asynchronous motor. ls a new generation of energy-saving motor.

YE3 center high H80-355 series motor, power from 0.75-375 kw,the number of 2,4，6.

YE3 series motor protection grade is IP55, cooling way for IC411installation dimensions conform to the lEC standard. Rated voltage of380v, 400v, rated frequency 50 Hz. Working environment temperature15C to 40C,no more than 1000 meters above sea level. Workstyle: continuous S1.

YE3 series high efficiency three phase asynchronous motor hashigh efficiency,large starting torque, low noise, structure morereasonable. Cooling heat dissipation is good, this series motor is ageneral-purpose three-phase asynchronous motor, can be used todrive all kinds of general machinery equipment, mechanical equipment,such as compressor, fan, water pump, can also be used in petroleum.chemical,pharmaceutical,mining and other (such as specialenvironmental conditions of use,please contact the designer).

This series of motor efficiency indicators shall be not less thanthe lE3IEC60034-30 standard value and efficiency of GB18613-2020grade 3 values.

Model description
