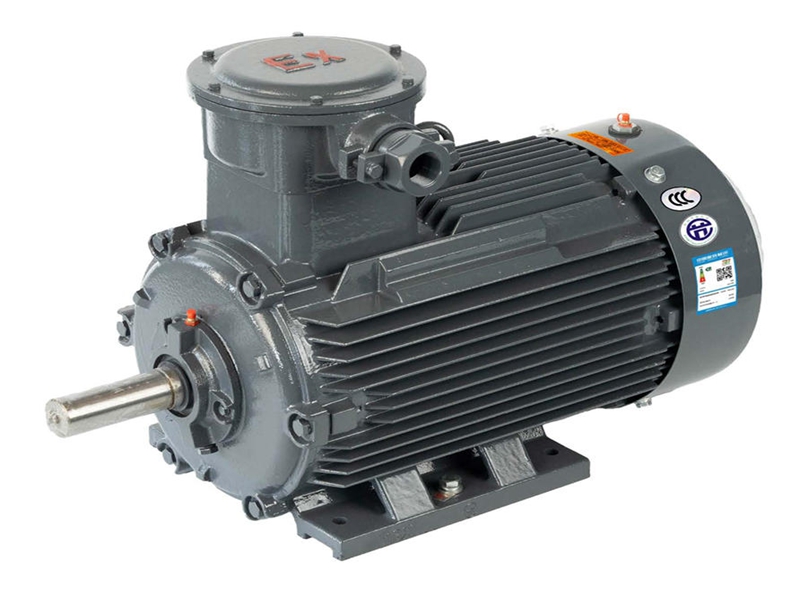

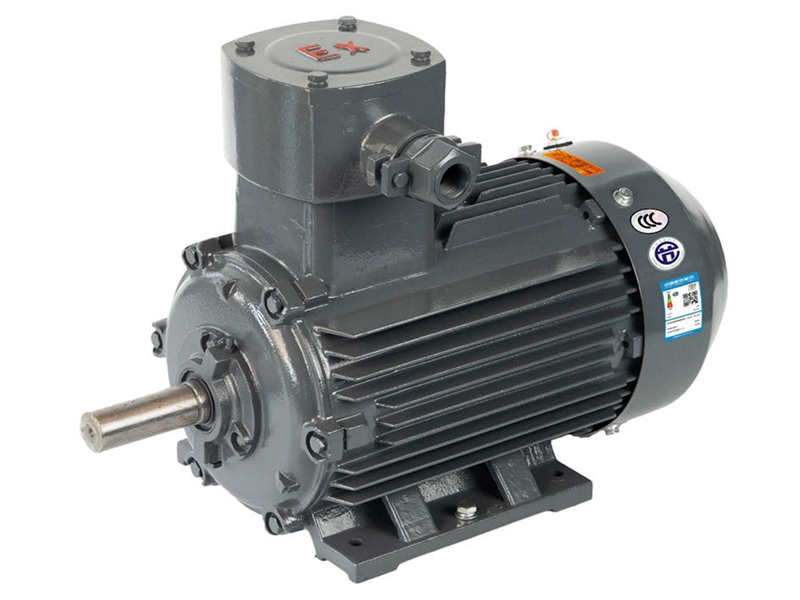

YBX5 series motor is totally enclosed carried out my company independentresearch and development, since the fan cooling, cage type flameproof three-phase asynchronous motor super ultra high efficiency, the efficiency indicatorsof GB18613-2020 "the small and medium sized three-phase asynchronousmotor limited value of energy efficiency and energy efficiency level, the highestlevel of energy efficiency level 1, and has good performance, the use of safeand reliable, the characteristics of vibration and noise is lower than similarproducts conform to the requirements of environmental protection, the productis in the leading domestic, international advanced level.YBX5 series flameproof three-phase. asynchronous motor, explosion-proofperformance meet GB3836.2 "explosive environment part 2: the flame-proofshell" d "protection device", is suitable for the sites with explosive air mixtureexplosive environment 1 one and 2 zone of the danger zone. Explosion-proofmarks: Ex d I Mb, Ex d llB T4 Gb, also can be made into the Ex d IIC T4 GbCan be used in petrochemical, coal, mining, ports, power plants, industrialmachinery, such as different industries, used to drive all kinds of generalmachinery, such as a fan, compressor, water pump, crusher, hoist, centrifuge.cutting machine, transport machinery, is the ideal power equipment.

Xecution standard

GB 755 rotary motor and performance

GB 1971 rotary motor terminal marks and direction of rotationGB 3836.1 explosive environment, part 1: general requirements for equipmentGB 3836.2 part 2: explosive environment by flame-proof enclosures "d'protection of the equipmentGB 3836.3 explosive environment part 3: by type "e" of increasing safetyprotection device

GB 10068 center for 56 mm and above mechanical vibration of motorvibration measurement and limit

GB 14711 small and medium-sized motor safety requirementsGB 18613 small and medium-sized three-phase asynchronous motorlimited value of energy efficiency and energy efficiency ratingGB 50058 explosion and fire dangerous environment electrical devicedesign specification

GB/T 997 rotary motor structure, installation type and the classification ofthe junction box location code (IM)GB/T 1032 three-phase asynchronous motor test method

GB/T 1993 rotary motor cooling method

GB/T 4772 rotary motor size and output power level

GB/T 4942.1 rotary motor (IP) protection grade of the whole structure of

grading

GB/T 10069.1 rotary motor noise measurement method and limit part 1: arotary motor noise measurement methodGB/T 10069.3 rotary motor noise measurement method and limit part 3:noise limit

GB/T 22719.1 scattered embedded ac low voltage motor windings turn-to-turn insulation part 1: test methods
